RTI Barrels
for the Mora, P-3, Prophet, and Priest

Brands

RPB (RTI Proprietary Barrel)

These are RTI's slug-capable barrels. The twist is fast enough to keep slugs stable and slow enough that they won't destabilize pellets at normal speeds

RPB barrels in .25 will be a snug fit for .251 slug.

LR (Long Range Pellet Barrel)

A slower twist keeps pellets stable at higher speeds and longer ranges. RTI introduced a "Long Range" barrel to fit this niche.

It began as an separate, upgradable part in early 2020 ahead of the Prophet's release. it's polygonal, with a 1:32" twist by Lothar Wlather, choked at 0.02mm (see here). It was listed alongside the Priest II, initially in 2020 for .22 as an add-on. And quietly followed up with a .25 option.

By May 2022 the LR barrel had fallen from mention on RTI's site in deference to the newer RPB barrel that emphasized slug & pellet compatiblity.

LW (Lothar Walther)

As of the mid 2020s, RTI has a close relationship with Lothar Walther; every non-RPB barrel that comes on a Mora is made by LW, and so are the the RPB barrels.

CZ

CZ was the original provider of RTI barrels. The Priest hit the market with three choices of 20" CZ barrels. Eventually, there was a 24" offering, with the .25 barrel on the Prophet. The last rifle to ship with a CZ barrel was the Prophet 2 Compact.

Barrel Length

700mm | 28"

Introduced in 2024 on the Mora Sniper (with backwards compatibility to the P-platform teased).

600mm | 24"

This is the default length length for all RTI rifles since The Priest. It showed up as early as 2020 with the Prophet September (not listed) and October (listed)

Found on the Prophet 2 and P-3 Standard and Performance in .22, .25, and .30 (not .177, those carry a 510mm barrel).

500mm | 20"

Found on The Prophet 2 Compact and Priest 2 Compact (both Performance and Standard) 500mm was found on X and 510mm was found on Y

400mm | 16"

These short barrels are available as aftermarket parts in by CZ in .22 and .25 and Lothar Walther in .30
See also here and here.
These are supposedly found in the .177 variants of the Priest 2 and Prophet 2 (though not the P-3???).

attributes

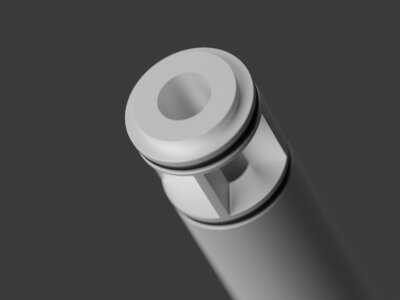

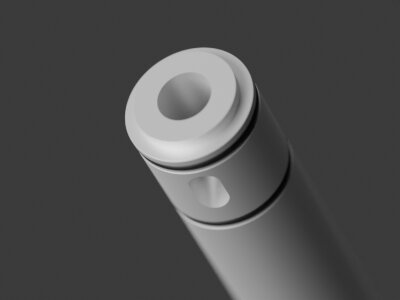

Transfer Ports

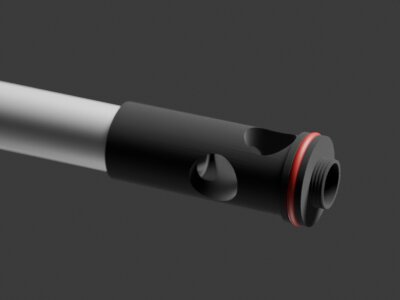

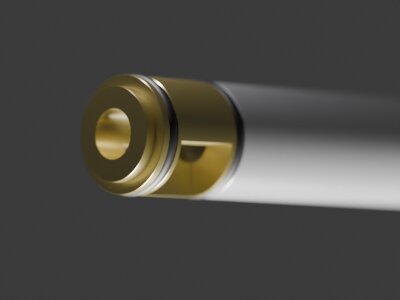

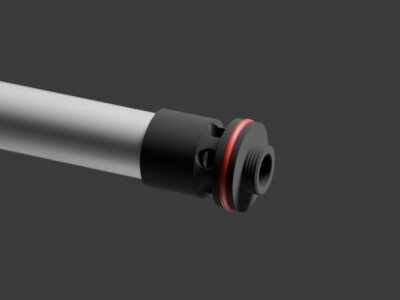

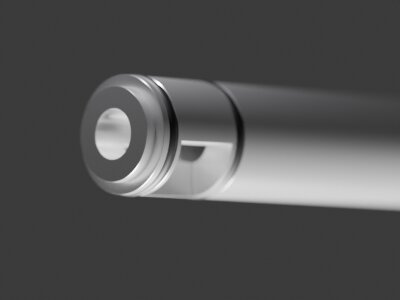

Breech / Mounting

Finish

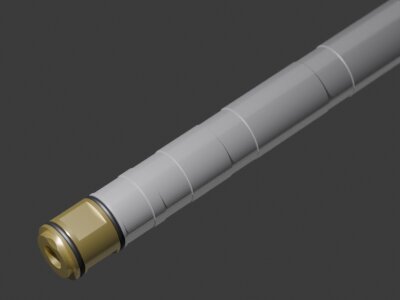

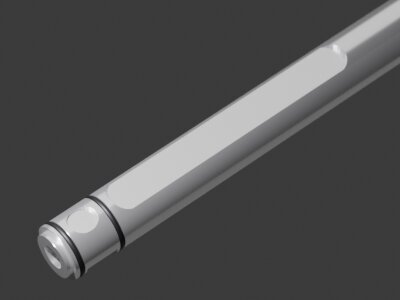

Anti-Rotation Flat(s)

(aka d-flat)

.177 CZ 20", 12 grooves, 450 twist rate, choked

Found on The Priest, Priest 2, and Prophet.

.22 CZ 20", 12 grooves, 450 twist rate, choked

Found on The Priest, Priest 2,

.22 CZ 20", 10 grooves, 450 twist rate, choked

Found on The Priest, Priest 2,

.30 Lothar Walther 20", 6 grooves, 406 twist rate, choked

This barrel extended the Priest's lineup to cover .30/7.62

5,5 (.22) Long Range Pellet Barrel

Introduced as an separate, upgradable part in early 2020 ahead of the Prophet's release. it's a Polygonal with a 1:32" twisted by Lothar Wlather, choked at 0.02mm (see here).

LW 24", 6 grooves, 1:32", choked --OR-- 5,5 (.22) Long Range Pellet Barrel

Found standard on the Prophet

LW 24", ? grooves, 1:32", choked

CZ 24", 10 grooves, 1:17,7", choked

Found standard on the Prophet

LW 24", 6 grooves, 1:16", choked

Found standard on the Prophet

LW 20", 1:17.7" twist, choked

Introduced with the Prophet II and Prophet II Compact, continued use in the P-3 and P-3 Compact

RPB 24", 1:16", light choke

Introduced with the Prophet II, continued use in the P-3

RPB 24", 1:20", light choke

Introduced with the Prophet II and continued to be used in the P-3

LW 24", 1:16", choked

Introduced with the Prophet II and continued to be used in the P-3 and Mora

RPB 20", 1:16", light choke

Introduced with the Prophet II Compact, dropped a few months later in favor of a CZ barrel. see note Also used in the Mora Compact

RPB 20", 1:20", light choke

Introduced with the Prophet II Compact, used in the Mora Compact

LW 20", 1:16", choked

Introduced with the Prophet II Compact, used in the Mora Compact

CZ 20", choked

Added to the Prophet II Compact a couple months after release see note

LW 1:17,7", choked

Introduced with the Mora Compact (probably, it could be the same as the 510mm variant if the marketing material is missing 10mm)

RPB 1:16", light choke

Introduced in the Mora Sniper

RPB 1:20", light choke

Introduced in the Mora Sniper

LW 1:16", without choked

Introduced with the Mora Sniper

16" .177 LW

Offerd as a third-party option, made for the Prophet Compact

16" .22 CZ

Sold on a third-party site

16" .25 CZ

Sold on a third-party site

16" .30 LW

Sold on a third-party site

RTI Arms Barrel 5,5mm 690mm 1/2 UNF Thread

A custom barrel by AirgunHeaven.com
